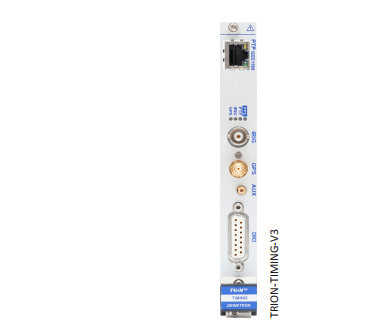

德維創DEWETRON系統時鐘同步板卡模塊TRION-TIMING-V3

系統時鐘和同步模塊

PTP / IEEE 1588

GPS、GLONASS

IRIG

PPS

8 × DIO, 1 × counter, 1 × AUX

TRION-TIMING-V3 技術指標
同步輸入模式	PTP/IEEE 1588,GPS IRIG PPS (pulse per second)
特點	1 programable frequency output(10 to1000000 Hz)
	1 advanced counter input
	8 digital l/O
PTP/IEEE 1588
IP 模式	Multicast
協議	UDP/IPv4; ETH
延時機制	End to End; Peer to Peer
IP-Address方式	DHCP
RJ-45 以太網	10/100 Mbit Ethernet connection; only for synchronization, no data trans- fer possible.
可編程的修正限值	10 ns to 500 ms
GPS 技術指標
兼容GNSS信號	GPS/SBAS L1,GLONASS
通道數	35
PPS 精度	100 ns
刷新率	1 Hz,5 Hz,10 Hz
位置精度(horizontal CEP) - Autonomous - Differential - Velocity	1.5 m 1.0 m 0.1 m/s
速度限值	500 m/s
GPS輸入接口	SMA for GPS antenna
IRIG輸入指標
兼容的 codes	IRIG code A or B; AM or DC
兼容性 (AM code)	0.5 Vp-p to 10 Vp-p
Ratio (AM)	3:1±10 %

兼容性(DC code)		DClevelshift (edge detection); TTL/CMOS compatible
		Low:<1.5 V	High:>3.5 V
阻抗		20 kQ
絕緣電壓		350 V
接口		BNC
Digital l/O指標
通道數		8
兼容性		CMOS/TTL
		Low:<0.8V	High:>2.0V
兼容性 (output)		TTL, 20 mA
過壓保護 - Input mode - Output mode		±30 Vc -0.5 to+5.5 V; short circuit protected
接口		D-SUB-15 socket
計數器指標
通道數		1 advanced counter or 3 digitalinputs
計數模式	Event counting	Basic event counting, gated counting, up/down counting and encoder mode (X1,X2 and X4)
	Waveform timing	Period, frequency, pulse width, duty cycle and edge separation
	Sensor modes	Encoder(angle and linear), gear tooth with/without zero, gear tooth with missing/double teeth
輸入信號兼容性		CMOS/TTL
計數器分辨率		32-bit
計數器時基		80 MHz
時基精度		Within DEWE2 system	Typ.10 ppm; max. 50 ppm
		Within DEWE3 system	Typ.2 ppm; max. 10 ppm
最大輸入頻率		10 MHz
過壓保護		±30V。c50 VpEAk(for 100 ms)
傳感器供電		5V(600 mA)and 12V(600 mA)
接口		On same D-SUB-15 socket as Digital l/O
AUX 指標
功能		Camera trigger, trigger input/output, acquisition clock and programmable clock output
兼容性 (input)		LVTTL
兼容性 (output)		LVTTL,10 mA
過壓保護		±20 Voc
接口		SMB socket
一般指標
功耗		5 W
溫度		0-50 C
重量		Approx. 240 g
