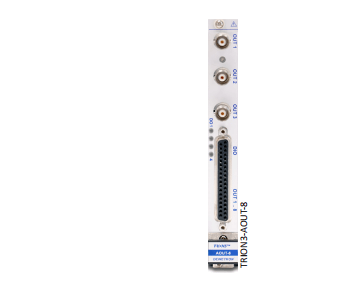

德維創DEWETRON信號輸出板卡TRION3-AOUT-8

8 路隔離輸出通道

可編程的電壓電流輸出

– ±5 V

– ±10 V

– ±30 mA

FPGA 任意型號發生器

數據回放

TRION3-AOUT-8 技術細節
輸入通道/ 接口		CH1 Analog OUT	CH2 Analog OUT	CH3 Analog OUT	Analog out Dl1 to 8	CH1toCH8 DO1to 4
板載緩存		512 MB
絕緣電壓 (通道間及通道和主機)		±350 Voc
環境參數	操作溫度	0 to+45℃(32 to 113°F)
	存儲溫度	-20 to+70℃(-4to 158°F)
	濕度	10 to 80% non cond.,5to95 % rel.humidity
功耗		Typ.15 W,max.24 W
模擬輸出		8 isolated channels, independently programmable
輸出范圍		±5 V,0to5V,±10V,0to10V,±30mA;0to 30 mA
負載電流		+30 mA max
溫漂		±25 ppm/K
線性度		<100 ppm
輸出阻抗		<1Ωat D-SUB connector,50 Ωat BNC
輸出保護		Continuous short to ground
模擬輸出精度		See Tab.58 below.

Modes1)	連續輸出	-10 to+10Vor-30 to+30 mA
	功能	波形	Sine, square, triangle, custom
		頻率	0.001 Hz to 1 MHz
		幅值	0-10V or 0-30 mAAK
		置零	-10 to 10Vor-30 to 30 mA
		相位	-180 to 180°
		對稱 (三角波)/ 占空比 (方波)	0.01 to 100 %
		定制波形	Up to 4 custom waveforms Max. 16384 samples per waveform
	數據流輸出	輸出信號	-10 to +10Vor-30 to +30 mA
		Optional factor and offset
	算術輸出	A*B;A+B;A-B
	監控輸出	Direct conditioned signal output:-10 to+10Vor-30 to +30mA
DAC模式		Highspeed mode		High-resolution mode
刷新率		2.5 MS/s		500 kS/s
DAC 分辨率		16-bit		32 bit
帶寬		600 kHz,4h ord.Bessel characteristic		70 kHz, 6th ord.Bessel characteristic
延遲		<5us		<100 us
LSB		305 μV		1 μV
線性		50 ppm		10 ppm
THD諧波		90 dB		100 dB
上升/下降時間		400 ns		4 μs
延遲(filter=off)		4 μs		15 μs
輸入輸出延遲		400 ns		3.5 μs
輔助電源供電		+5 V,20 mA
隔離數字輸入 - Compatibility(input) - Overvoltage protection - Bandwidth - Pulse width distortion - Input high current @ 5VUIN - Input high current @ 35V UIN		CMOS Low:<1.5 V High:>3.2 V ±35Vc,65 VEAk(100 ms) 50 kHz 2.3 μs <3 mA <5 mA
隔離數字輸出 - Compatibility (output) - Max.collector voltage - Max. collector current		Open collector +30 Vc 5 mA

非隔離數字l/O - Compatibility (input) - Compatibility (output) - Overvoltage protection	CMOS/TTL,100 kΩ pullup TTL, 20 mA T30 Voe30Vpr (LUUTT1S
Number of DIO	6DI+3DI(isolated)+4DO+1DO(isolated)+2(reserved internally)
接口	D-SUB-37 socket for all 8 channels,additionally 3x BNC sockets for CH1 to CH3
BNC 接口	Analog out	AO1, AO2, AO3
D-SUB-37接口	Analog out	AO1 to AO8
	Digital in	DI3 to DI8
	Digital in (isolated)	DI1,DI2,DI11
	Digital out	DO1 to DO4
	Digital out (isolated)	DO5
